H-Star Mixer



Content on this page requires a newer version of Adobe Flash Player.

Get Adobe Flash player

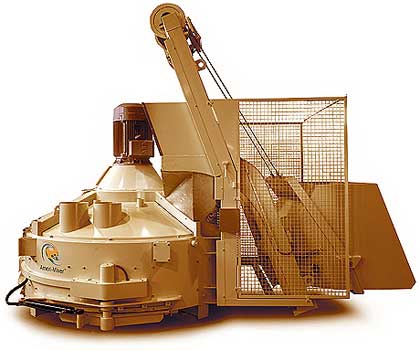

H-STAR MIXER: faster, money-saving

The H-STAR MIXER is a planetary mixer designed for your customization needs. It has the potential to generate faster delivery times and significant cost savings.

"We’ve paid close attention both to design and manufacturing technology in our engineering for these new planetary mixers,” Tom Hilts explains. “We’ve made many of the most-used features standard. The options we offer let our clients customize their unit to suit a specific application.”

The mixer includes many of the standard features found in existing brands.

H-STAR MIXER operation is straightforward and dependable. “We know that for our customers time is money.” Hilts notes.

Consider our new design highlights

    • H-STAR MIXER from W.P. Hilts & Co. includes many of the standard features found in existing brands with the potential to deliver faster delivery times and significant cost savings.
    • Gearbox that embodies high quality, structural design with easy access cover
    • Hardened gears in an oil sump for proper lubrication and cooling
    • Wide slewing ring for smooth and reliable operations
    • Hydrodynamic coupling for protection to the transmission against overloads
    • Gearbox with state-of-the-art materials
    • Discharge gate proximity switches activated by cams fixed on the main gate
    • Reversible mixing blades to optimize the mixing action and control wear-and-tear
    • Hydraulic power unit is included
    • All wires and electrical cables are protected in PVC-coated metal conduits, metal cable glands fixed on an aluminum junction box to ensure all board connections
    • Inspection cover provides easy access to gearbox
    • Airbag for dust collection is included.

Options available in 8 models

H-STAR MIXER comes in 8 models. They range from 500L to 4500L. Some of the optional features available are:

    • Multiple discharge doors
    • Choices of mixer liners - both side and bottom
    • Choice of various materials for mixing blades
    • Fast discharge blade assembly - FDD
    • High-pressure washing system
    • Skip hoist and rails
    • Mixer dust collector with fan
    • Moisture control probes
    • Motor control center with soft start and disconnects
    • Multiple positioning for hydraulic pump
    • Various discharge funnel designs

H-STAR MIXER is yet another example of the W.P. Hilts & Co.’s continued service in all aspects of manufacturing standard and specialized concrete plants, as well as updates and retrofits. “Producing our own product allows us to provide very personal service and parts, at very fair and reasonable pricing,” Tom Hilts emphasizes.
